Hottima

HIGH PRECISION HOT PLATE

Hottima

HIGH PRECISION HOT PLATE

OVERVIEW

Best temperature uniformity

Introducing the Electron Mec Hot Plate: a precision-engineered solution designed specifically for scientific and industrial applications.

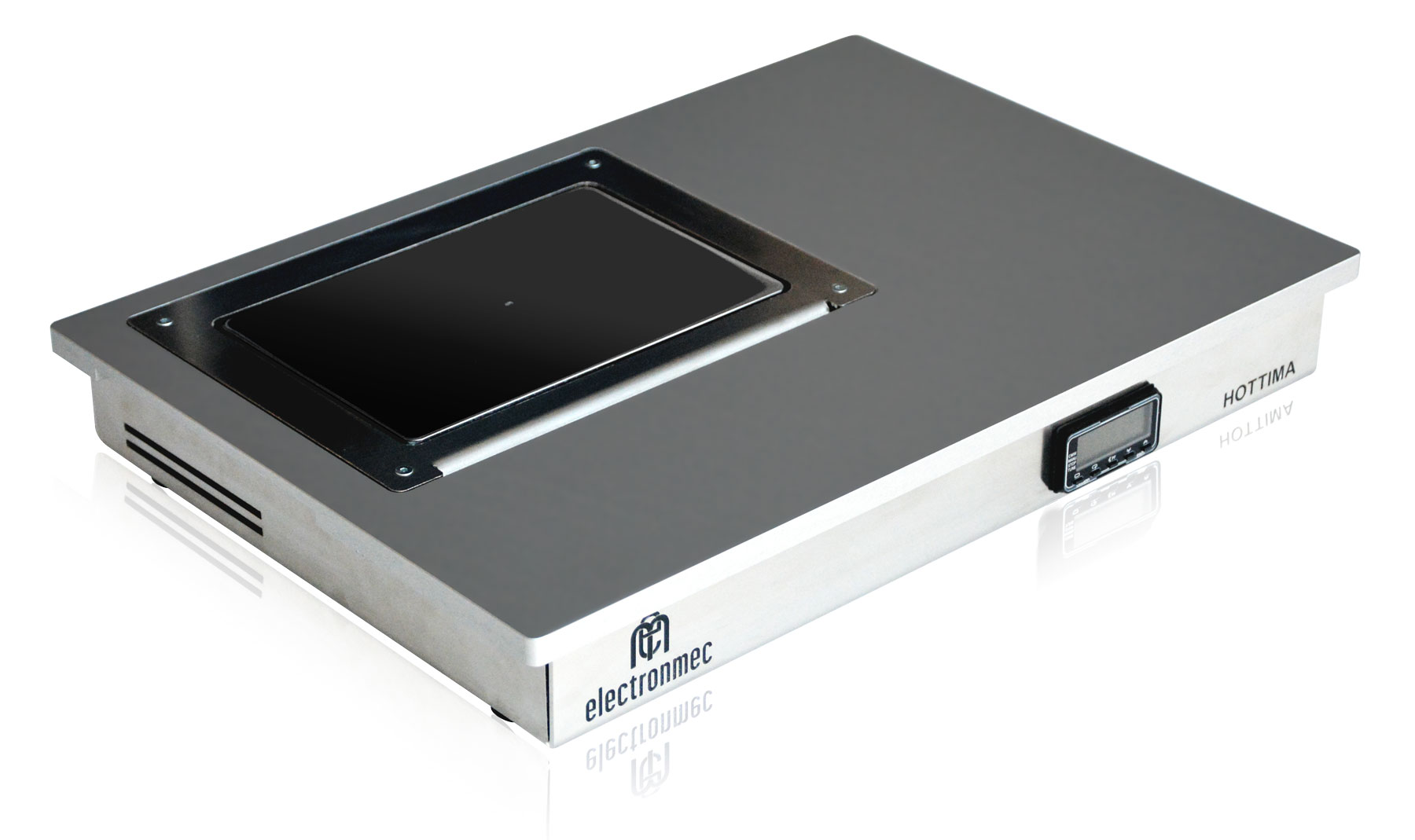

Hot plate

Vacuum Clamping Hole

Air Curtain

Vacuum Ø 6mm
Power Switch

Fan cooled area

Controller

YOU CAN FIND

Quality and detail

Manufactured with attention to detail and a commitment to quality, Electron mec’s hot plate offers:

  • Pinpoint Temperature Control
    Achieve precise temperatures necessary for your experiments with uniform temperature distribution.
  • Versatility
    Easily adapt to a wide range of scientific tasks and research endeavors, including varying environments.
  • Customizability
    Tailor the hot plate to your specific needs.
  • Robust and Ergonomic Design
    Built to withstand the rigors of laboratory, optionally bench mounted.
  • Consistent Performance
    Reliable results, consistently delivered.

Function description

Hot Plate

To ensure temperature uniformity and consistency across the surface, even under significant loads and volumes, the hot plate is manufactured using heavy brass with high thermal mass.

  • Heating surface dimensions can be customized on request

Fan cooled Area

The surface surrounding the heated area is cooled by forced air. The exhausted cooled air is redirected through a curtain, minimizing the exposure of the operator to fumes.

Controller

The PID controller provides power to the heater, avoiding temperatures variation. Both the Set Point temperature and the actual temperature are displayed on the controller. The PID controller can be supplied integrated in the Hot Plate enclosure or as a separated unit, providing high flexibility.

  • Indipendent control unit option for bench mounting is available and customizable on request

Vacuum Clamping

Vacuum Clamping allows uniform contact heat transmission. A 6 mm Ø quick vacuum connector is located in the back.

TEMPERATURE

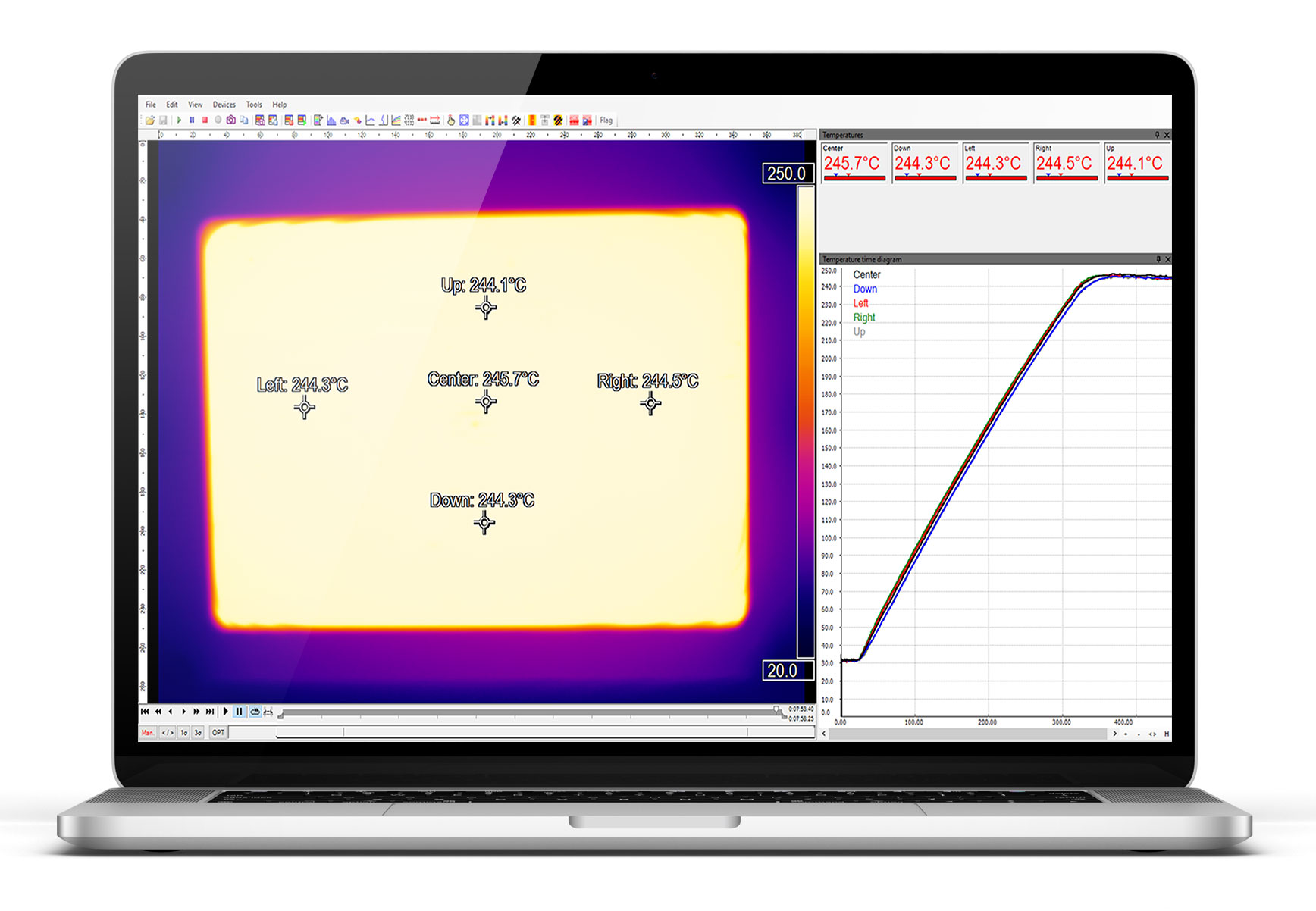

During the manufacturing process, great attention is placed on the uniformity of the operating temperature and the stability of the heating rate.

Hot Plate Temperature

up to 350°C (450°C on request)

Temperature Uniformity

< ± 1,5% over 85% of heated area

Averege heating rate

35°C/min

TECHNICAL DATA

PRODUCT

HOTTIMA

HOTTIMAX

Heaters Power

800 W

1600 W

Hot plate dimensions

110mm x 165mm

210 mm x 210 mm

Overall dimensions

380mm x 260mm x 60mm

440 mm x 320 mm x 66,5 mm

TECHNICAL DATA

HOTTIMA

Heaters Power

800 W

Hot plate dimensions

110mm x 165mm

Overall dimensions

380mm x 260mm x 60mm

HOTTIMAX

Heaters Power

1600 W

Hot plate dimensions

210 mm x 210 mm

Overall dimensions

440 mm x 320 mm x 66,5 mm
